China HEPA Filter Manufacturers, Suppliers, Factory - Customized HEPA Filter Wholesale

Your Leading HEPA Filter Supplier

Estalbished in 2010, Suzhou National Purification Technology Co., Ltd. (SNAF) is a production-oriented enterprise integrating R & D, design and intelligent manufacturing.and has become one of the leading companies in the air filtration industry. A HEPA filter is not like any regular air filter you typically put in your home. HEPA filters are pleated mechanical air filters that have a considerable thickness in order to capture the particulates. The pleats create a mat of fibers that are randomly arranged. The random, dense arrangement of fibers in the HEPA filter help to catch a range of particle sizes. As air particles pass through the air filter, they are caught by three mechanisms: diffusion, interception, and impaction.

Why Choose Us?

Production Strength

National Group has invested 150 million yuan, with a total construction area of about 35,000 square meters, including about 4,000 square meters of clean workshops.

Production Market

SNAF mainly export to USA, Japan, Germany, Bulgaria, Singapore, South Korea, Thailand, Dubai, Kazakhstan, etc.

Advanced Equipment

The factory is equipped with modern production equipment, automated production lines and professional testing equipment, which can stably mass-produce qualified products.

Complete Qualifications

SNAF has obtained ISO9001 quality management system certification, ISO14001 environmental management system certification, EU CE certification and US UL certification, and have more than 50 domestic and foreign patents.

Types of HEPA Filter

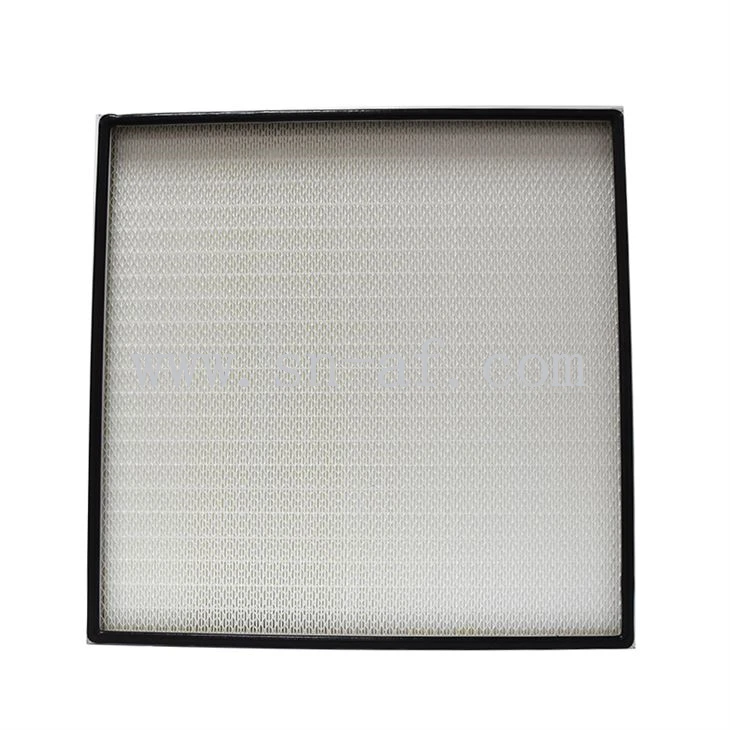

Gel Seal HEPA Filter
The gel seal HEPA filters are mainly used for pharmaceutical industries. The fluid gel can help provide better seal to prevent air leakages. All of the gel seal HEPA filters are mini pleated filter media, aluminum alloy frame with slot to install gel seal. Slot positions are at the top of the frame or side of the frame.

H13 Mini-Pleat HEPA Filter
Mini-pleat Filter refers to the filters, overall appearance of a box-shaped, whose material using hot melt to separate. This kind of products is the most common high-efficiency filter in today's purification industry, applied to the terminal of a variety of clean plant filtration, cleaning workbench local purification.

Specifications of HEPA Filter

Separator HEPA Filter
Number	Model	L	W	H	Area	Airflow.pressure drop
		Mm	Mm	Mm	M2	0.75m/s	H13(Pa)	H14(Pa)	1.0m/s	H13(Pa)	H14(Pa)
1	Y13320320150	320	320	150	3.1	276	200	220	369	250	275
2	Y13484484150	484	484	150	7	632	200	220	843	250	275
3	Y13595595150	595	595	150	10.6	956	200	220	1274	250	275
4	Y13610610150	610	610	150	11.2	1005	200	220	1340	250	275
5	Y131220610150	1220	610	150	22.3	2009	200	220	2679	250	275
6	Y13320320220	320	320	220	4.5	276	150	165	369	220	242
7	Y13484484220	484	484	220	10.3	632	150	165	843	220	242
8	Y13595595220	595	595	220	15.6	956	150	165	1274	220	242
9	Y13610610220	610	610	220	16.4	1005	150	165	1340	220	242
10	Y131220610220	1220	610	220	32.7	2009	150	165	2679	220	242
11	Y13320320292	320	320	292	6	553	250	275	922	350	385
12	Y13484484292	484	484	292	13.7	1265	250	275	2108	350	385
13	Y13595595292	595	595	292	20.7	1912	250	275	3186	350	385
14	Y13610610292	610	610	292	21.7	2009	250	275	3349	350	385
15	Y131220610292	1220	610	292	43.5	4019	250	275	6698	350	385
If H14 is used, please change Y13 to Y14 in model number, resistance refer to H14 PA list,others do not change.
Note: Pressure drop ±10%

Features of HEPA Filter

Adopt special folding machine for manufacturing
Using special glass fiber filter paper as the filter material
Using special aluminum foil as Separator
Each filter is through rigorous testing

Customization Options

Size: Customizable

Frame: Extruded anodized Aluminum profile

Separators: Hot melt

Media: Wet-laid Glass fiber

Sealant: Polyurethane

Temperature: Customizable

Humidity: Customizable

Test: Each filter is individually tested

Applications: Terminal air supply housing, FFU, clean equipments

Usage of HEPA Filter

Powder Coating

HEPA filters are used in powder coating booths to capture overspray particles, ensuring a clean work environment and preventing contamination during the coating process. They help maintain high-quality finishes by filtering out particulate matter.

Metalworking

In metalworking, HEPA filters are used in dust collection systems to remove fine metal particles and fumes generated during cutting, grinding and welding processes.

Food Processing

HEPA filters are critical in food processing facilities to maintain a sterile environment by filtering out airborne contaminants such as dust and bacteria.

Pharmaceutical

HEPA filters are used in pharmaceutical cleanrooms to remove airborne particles, including bacteria and viruses, ensuring a sterile production environment for medications and vaccines.

Laser or Plasma Cutting

HEPA filters are employed in laser or plasma-cutting operations to capture the fine particulate matter and fumes produced during the cutting process.

Certificates

productcate-1-1

Payment Terms

T.T with 30% downpayment, 70%before shipment.

Paypal or West Union also accept.

Packaging & Delivery

Packaging	Inner packaging: Plastic film/foam/corrugated cardboard
Packaging	Outer packaging: Paper box/wooden box/pallet
Shipping	By logistics; by automobile; by train; by shipping; by air.

productcate-1-1

FAQ

Q: What are the advantages of SNAF?

A: Product quality is stable and cost-effective.
The production and testing equipment is complete setup and the most advanced in the industry.
Own self-developed automatic production line of high efficiency filter.
Continuously invest in R & D, innovation and sublimation, with a number of patents and inventions.

Q: What other patented technologies does SNAF have?

A: Seamless one-time forming is a patent independently developed by our company. The invention has simple structure and convenient processing. Automatic processing and production help shorter turnover of multiple processes, save time and labor and improve the production efficiency.

Q: Can the product be customized?

A: Yes, customized filters are available.

Q: How long is the delivery time?

A: It depends on the order quantity. Usually it takes about 7 to 15 working days after receiving your deposit.

Q: What is the market for the products?

A: SNAF mainly exports to Japan, South Korea, Europe and United States, Southeast Asia, Central Asia, and the Middle East, etc.

As one of the leading hepa filter manufacturers and suppliers in China, we warmly welcome you to wholesale or buy bulk discount hepa filter for sale here from our factory. All customized products are with high quality and competitive price. Contact us for quotation.

HEPA Filter, Separator HEPA Filter, H13 Mini Pleat HEPA Filter
